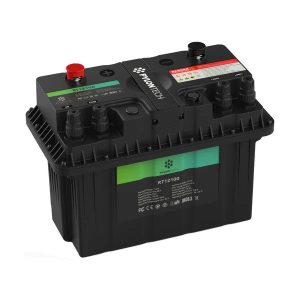

The Pylontech 12V Series are developed all-purpose lithium ion battery modules, With the cutting edge LFP (Lithium iron P hosphate) cell, embedded BMS (Battery Management System) and mechanical design,Pylontech RT12V Series product provides inherent safety, extreme high reliability and zero maintenance.
Comparing to the same capacity lead-acid based batteries, it has more than twice of the usable capacity, more than 3 times of the life cycle, but only about 40% of the weight. It is a prefect replacement to the lead acid based batteries in the applications such as marine, RV, golf carts and solar storage. RT12V Series product will bring you the perfect experience in different applications.
When connected only in parallel mode you cann connect unlimited units, but if connected in series, maximum 16 units, Maximum 4 in series per 4 in parallel.
Techinical Specifications
- Technical specifications:
Cycle life: >6000 cycles (90% DoD) @ 25°C
Max. continuous discharge current*: 100A
Max. pulse discharge current: 200A (max 30s)
Charge voltage: 14.0V – 14.4V (14.4V recommended)
Max. continuous charge current: 100A
Discharge Cut-Off Voltage: 10V
Operating Discharge temperature: -20°C to +60°C
Operating Charge temperature: -0°C to +60°C
Storage temperature: -40°C to +60°C</li>
Series* Connection Allowed: Up to 4S (up to 16 batteries eg 4S4P)
Parallel* Connection Allowed: Up to 16P @ 12V (12V 16P, 24V 8P, 48V 4P max
Protection: Short Circuit Protection
Over/Under Voltage Protection
Over/Under Temperature protection
Over Current protection
Certifications: UN38.3 Approved,
SAE J930, SAE J1455, UL 1973, IEC62619, FCC, CE, Bluetooth SIG
Case Structure: Rugged mechanical design
Ingress Rating: IP67 Rating
Warranty: 1 Years
Size: Standard G31 (W325mm x D173.5mm x H226mm)
