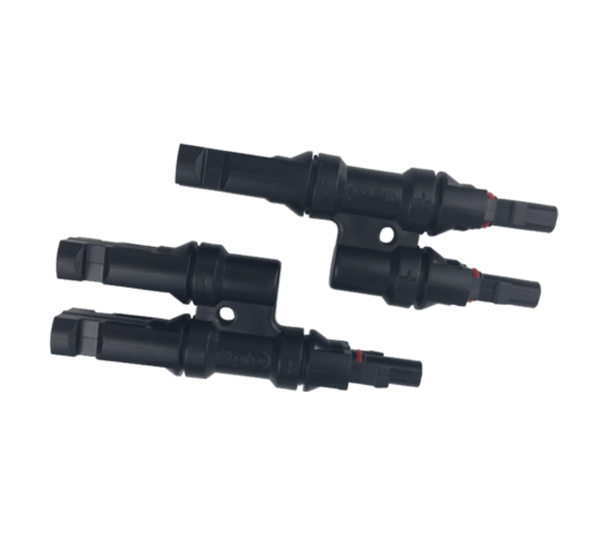

Solar Branch Connectors MMF+FFM Pair

د.إ 55.00 + VAT: د.إ 57.75

Out of stock

Renogy Solar Branch Connectors are used for parallel wiring solar panels (PV modules). Sold as a pair; these “Y-Connectors” will maintain the voltage of the solar panel configuration to match the battery size.

Key Specification

No Specifications Added.

Product Description

These connectors are solely compatible with solar connectors and come with one male (MMF) and one female (FFM) connector. Use these Solar Branch Connectors to make tight; waterproof connections.

Additional information

Features

RENOGY SOLAR PANEL BRANCH CONNECTORS (PAIR)
Withstanding voltage: 1000V DC(TUV); 600V(UL) Contact Resistance: 1m
Protection Class: Class II Temperature: -40°F to +194°F
Protection Degree: IP67; mated Unmating Force:147.51Ft·lb
Insulation Material: PC/PA Contact Material: Copper; silver plated
Flame Class: UL94-V0 or UL94-5VA
  • Hard plastic
  • One FFM and one MMF
