Comprehensive FAQ for ICECO VL45 Dual Zone 12V Portable Refrigerator/Freezer
Product Features & Specifications

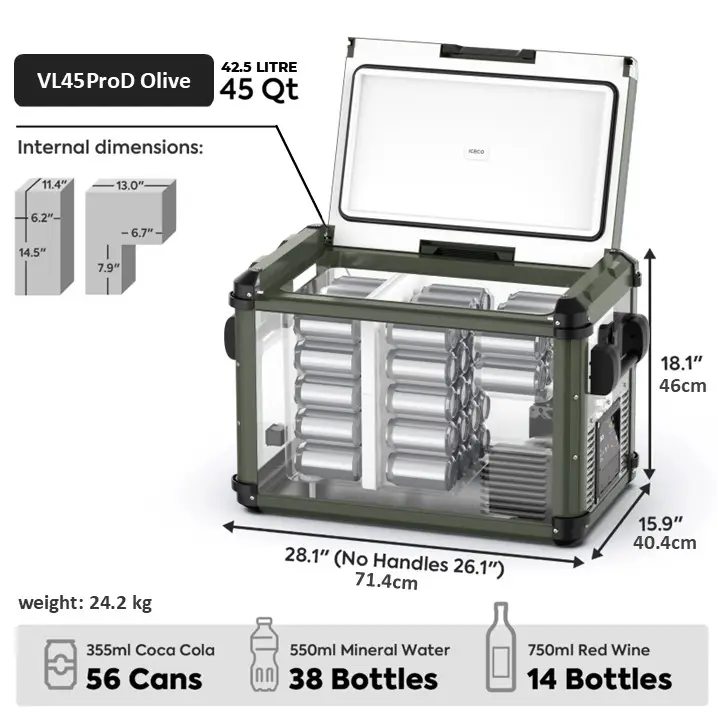

What is the capacity and dimensions of the VL45 Dual Zone?
The VL45 Dual Zone has a 42.5-liter capacity with external dimensions of 714 x 404 x 460mm and weighs 24KGS. It features dual compartments that can be controlled independently or combined into one large compartment with a removable divider1.
What temperature range can the VL45 achieve?
The VL45 operates from 0°F to 50°F (-18°C to +10°C), allowing it to function as both a refrigerator and freezer. Each zone can be set to different temperatures independently when using the dual zone feature.
What type of compressor does it use and what warranty comes with it?
The VL45 uses a high-efficiency SECOP compressor known for reliability and energy efficiency. ICECO provides a 5-year compressor warranty and 1-year parts warranty, demonstrating confidence in the product’s durability.
What power options are available?
The unit features dual AC/DC power compatibility, accepting both 12V/24V DC and 110-240V AC inputs. It includes DC ports on both sides for versatile power connections and two USB outlets for charging mobile devices when running on DC power.
How much power does the VL45 consume?
Power consumption is approximately 42.5Ah at 12V in 24 hours, with an average daily energy consumption of 0.463 kWh/24H and annual consumption of 169 kWh.
Setup & Initial Operation
How long should I wait before plugging in the unit after transport?
You should wait at least 12 hours before plugging in the unit if it was transported on its side. This allows the refrigerant to settle properly and prevents compressor damage.

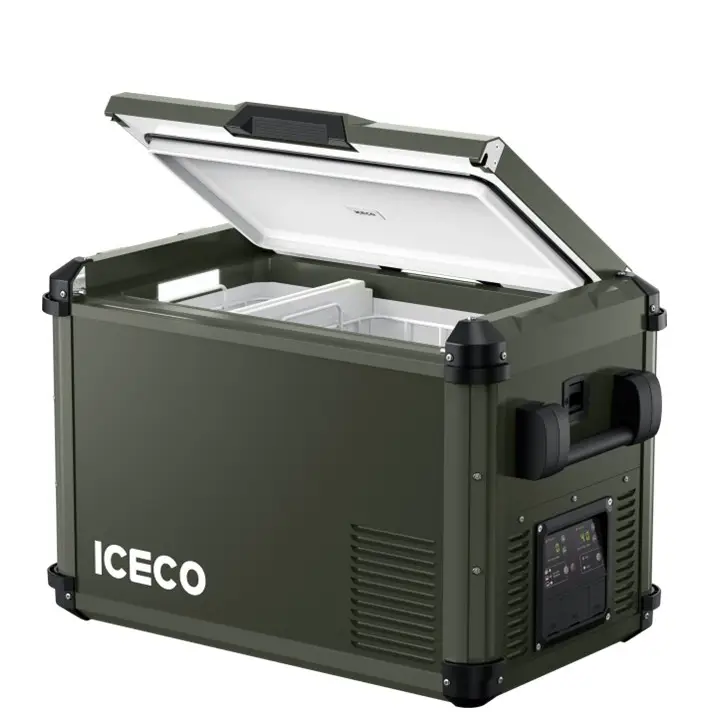

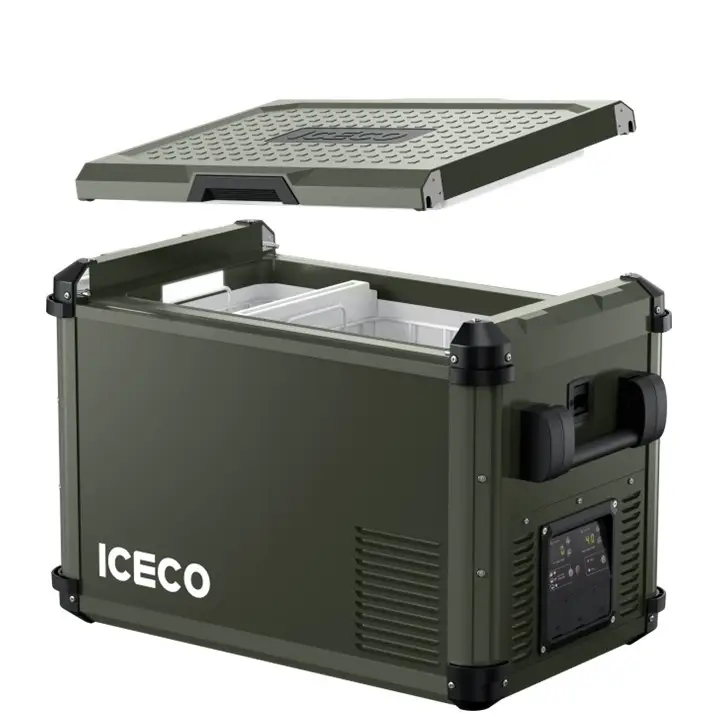

How do I open the multi-directional lid?
To open from either side, keep fingers together and grip the latch, push inwards and lift up. The multi-opening lid design allows easy access in tight spaces without complete removal.
What do the MAX and ECO modes do?
MAX mode provides faster cooling but uses more power – ideal when plugged into AC power. ECO mode is more energy-efficient and better for battery operation, though it cools more slowly.
How do I switch between Celsius and Fahrenheit?
After powering on, press and hold the MODE button and Temperature DOWN button for 3 seconds to switch between °C and °F display.
Power Management & Battery Protection
What is the 3-level battery protection system?
The VL45 features 3-level battery protection (High, Medium, Low) to prevent draining your vehicle’s starter battery. Most users recommend starting with the “Low” setting to ensure reliable operation.
Can I use both AC and DC power simultaneously?
No, connecting the unit to AC/DC power at the same time may cause a module to burn out. The unit will automatically switch between power sources, but simultaneous connection is not recommended.
Can I use solar panels to power the VL45?
Solar panels need to be connected with a battery system – they cannot directly power the fridge. Many users successfully run their VL45 with solar setups and battery banks for off-grid operation.
Operation & Usage
Can the unit operate while tilted?
Yes, the VL45 can operate normally at up to a 40° tilt, making it ideal for bumpy roads and off-road conditions during travel.
How do I set the temperature?
After powering on, press Temperature UP or DOWN buttons to adjust. The set temperature will appear as a flashing number, then the display returns to show the current interior temperature.
What items can fit in the removable baskets?
The removable baskets can accommodate items up to 13″ tall, providing flexible storage options for various food and beverage containers.
How do I use the dual zone feature?
The dual compartments can be controlled independently for different temperatures, or you can remove the divider to create one large compartment. Each zone has individual temperature controls.
Troubleshooting & Maintenance
Why is there condensation on the outside of my unit?
When humidity is high, moisture can condense on the cooler exterior surface. This is a normal physical phenomenon and not a defect – it indicates the unit is cooling properly.
How do I clean and maintain my VL45?
The unit features a convenient drain hole for easy cleaning. Use the included drain plug and clean with mild soap and water. The removable baskets make interior cleaning easier.
What should I do if my unit makes noise during startup?
Some noise during compressor startup is normal and should quiet down after about 45 seconds. If noise persists or is excessive, contact customer service for evaluation.
How do I access the control panel when running on 12V?
The display may shut off to conserve power when running on DC. This is normal power-saving behavior – the unit continues operating and will show current temperature when activated
