The Renogy Smart Lithium Iron Phosphate Battery with Bluetooth is designed for the drop-in replacement of deep-cycle lead-acid batteries with its standard BCI group size. Manufactured with automotive-grade battery cells, it offers excellent cycle life expectancy even under high and varied loads.
Technical Specifications
12V 100AH LITHIUM IRON PHOSPHATE BATTERY W/ BLUETOOTH
ELECTRICAL SPECIFICATIONS
Battery Type: Lithium Iron Phosphate
Rated Capacity: 100 Ah
Nominal Voltage: 12.8 V
Voltage Range: 10~14.8 V

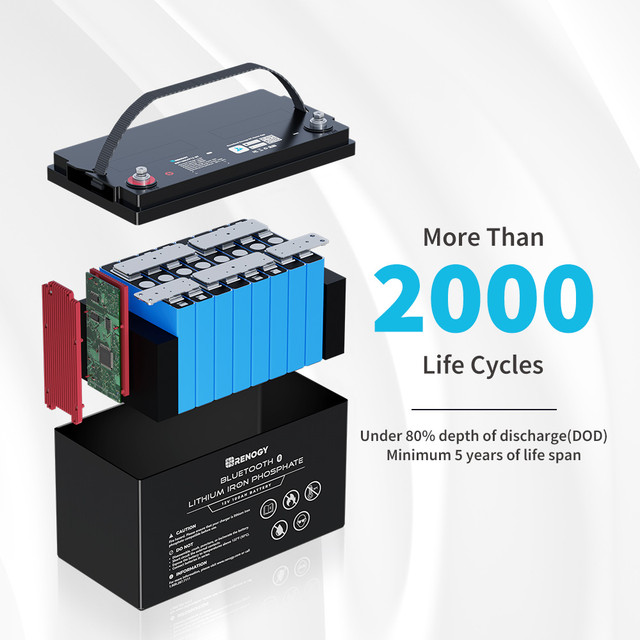

Cycle Life(0.5C,25℃): 80%DOD 2000 Cycles
Connection Method: Parallel(Up to 8)
Automatically Self-heating Function: No
MECHANICAL SPECIFICATIONS
Dimensions: 12.99 x6.77 x 8.43 inch / 330 x 172 x 214mm
Weight: 28.7 lbs. / 13.0 kg
Protection Rate: IP65
CHARGING PARAMETERS
Charge Voltage: 14.4V
Maximum Continuous Charging Current: 50 A
DISCHARGING PARAMETERS
Maximum Continuous Discharging Current: 100 A
TEMPERATURE PARAMETERS
Standard Operation Temperature: 25℃±5℃
Storage Temperature: -13~149℉ / -25~65℃
Charge Temperature: 32~131°F/ 0~55°C
Discharge Temperature: -4~140°F/ -20~60°C
COMMUNICATION PORT
Built-in Bluetooth: Yes
Communication Port: Modbus
ACCESSORIES
M8 Bolts: x 2
WARRANTY
Material and workmanship warranty: 3-year
CERTIFICATIONS
MSDS, UN38.3, FCC: Yes
